Parallelising our code for CPU

Overview

Teaching: 30 min
Exercises: 20 min
Questions

  • What is the difference between serial and parallel code?

  • How do CPU and GPU programs differ?

  • What tools and programming models are used for HPC development?

Objectives

  • Understand the structure of CPU and GPU code examples.

  • Identify differences between serial, multi-threaded, and GPU-accelerated code.

  • Recognize common programming models like OpenMP, MPI, and CUDA.

  • Appreciate performance trade-offs and profiling basics.

Parallel CPU Programming

In the previous section, we saw how to make our code faster for sequential jobs. However, there are cases where, no matter how much you optimize, a single process remains a bottleneck. In such cases, we move to parallelization instead of vectorization, especially when computations involve dependencies or irregular structures that cannot be expressed as simple array-wide operations. Some tasks are even embarrassingly parallel meaning they consist of completely independent jobs that you can run side by side, on different CPU cores or separate computers, without any communication.

A perfect example from astronomy is finding stellar variability period from their light curves (measurements of brightness over time). Analyzing one star is quick, but analyzing data from thousands or millions of stars sequentially can take days or weeks. This is where parallel computing becomes essential.

Analyzing Light Curves with Sequential and Parallel Execution

In astronomy, analyzing light curves (the time and brightness data plot of objects in the night sky) is a fundamental task. One common goal is to determine the most likely period of variability, which tells us how often an object repeats its brightness changes.

The Lomb–Scargle Periodogram

To detect periodic signals in light curves, we often use the Lomb–Scargle periodogram.

Sequential vs. Parallel Execution

There are two ways to compute the periodogram for many light curves:

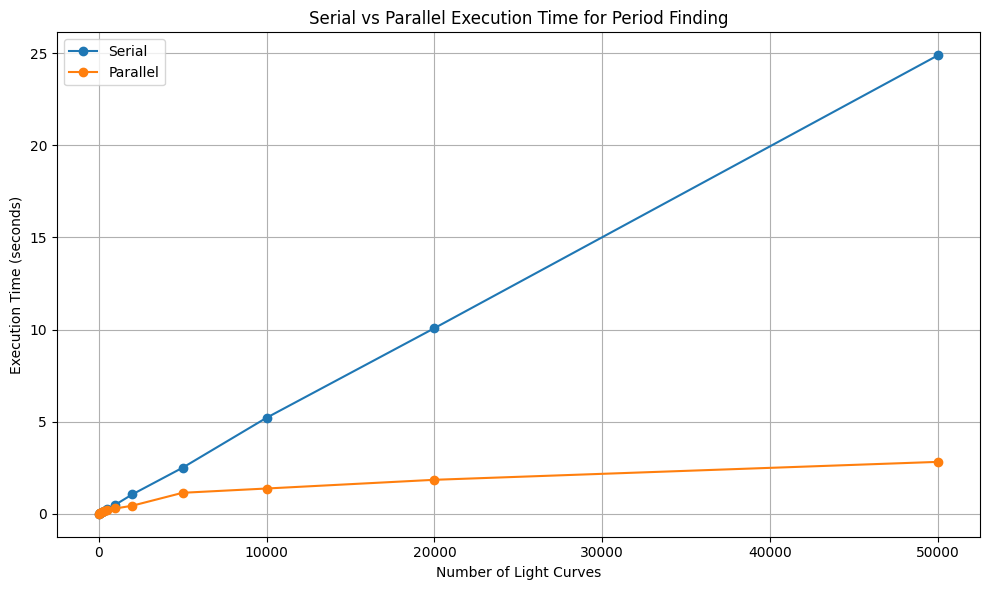

Below you can see how the execution time scales up while using the sequential execution vs the parallel execution for detecting the periods of lightcurves using the Lomb–Scargle periodogram

Serial vs. Parallel Performance Comparison

From the plot, we can make the following remarks:

Computational Complexity

The efficiency of both light curve processing and the Lomb–Scargle algorithm depends on their computational complexity.

  • For many simple data processing tasks, the time required grows roughly as O(n), meaning if you double the number of data points, the computation takes about twice as long.
  • Other algorithms are more expensive, following O(n²) scaling, where doubling the data points makes the computation four times longer.
  • The classical Lomb–Scargle periodogram has a complexity of about O(n × m), where n is the number of data points in a light curve and m is the number of trial frequencies tested. In practice, this often behaves closer to O(n²) for dense frequency searches.
  • More modern implementations (like the fast Lomb–Scargle) use mathematical tricks to reduce the scaling closer to O(n log n), making them far more efficient for very large datasets.
  • Understanding complexity is crucial: it tells us when parallelization will give modest gains (e.g., for O(n) tasks) and when it becomes essential (e.g., for O(n²) or worse).
  • Parallelization reduces effective complexity by dividing the work across multiple CPU cores.
    • For example, if a task is O(n²) on one processor but can be spread across p processors, the effective runtime becomes closer to O(n² / p).
    • While it doesn’t change the theoretical scaling, it reduces the constant factor dramatically, making otherwise infeasible computations practical.
  • For small tasks, parallelization does not save time (and may even cost a little extra).
  • But as the workload grows, parallelization provides a much more efficient workflow.

Parallel Programming on CPUs

Parallel programming on CPUs is primarily achieved through two widely-used models:

OpenMP (Open Multi-Processing)

OpenMP is used for shared-memory parallelism. It enables multi-threading where each thread has access to the same memory space. It is ideal for multicore processors on a single node.

OpenMP was first introduced in October 1997 as a collaborative effort between hardware vendors, software developers, and academia. The goal was to standardize a simple, portable API for shared-memory parallel programming in C, C++, and Fortran. Over time, OpenMP has evolved to support nested parallelism, Single Instruction Multiple Data (vectorization), and offloading to GPUs, while remaining easy to integrate into existing code through compiler directives.

OpenMP is now maintained by the OpenMP Architecture Review Board, which includes organizations like Arm, AMD, IBM, Intel, Cray, HP, Fujitsu, Nvidia, NEC, Red Hat, Texas Instruments, and Oracle Corporation. OpenMP allows you to parallelize loops in C/C++ or Fortran using compiler directives.

No OpenMP for Python?

While OpenMP is not supported by Python, there are other Python tools that use similar logic. In many cases, when you need to run complex data processing as efficiently as possible, you can use multiprocessing package that allows you to split your dataset into chunks and send them to be processed by different CPU cores. multiprocessing is a higher-level tool than OpenMP, in the sense that it doesn’t do any kind of optimization on the level of data structures. When performance is really critical, lower-level tools give you more control, but when you want to speed up a processing of a large table from a week to one night, multiprocessing will do the job.

Terminology

Nested Parallelism

  • Nested parallelism occurs when a parallel task itself spawns additional parallel tasks. For example, imagine a program where each thread is responsible for a different data block, and within each block, more threads are launched to handle sub-tasks. This is useful when dealing with hierarchical or recursive algorithms but must be managed carefully to avoid performance penalties due to thread overhead.

Single Instruction, Multiple Data (SIMD) – Vectorization

  • SIMD is a form of data-level parallelism where the same instruction operates on multiple data elements simultaneously. For instance, instead of adding two numbers at a time, SIMD allows processors to add pairs of numbers in parallel using wide registers (like 128-bit or 256-bit). Vectorized operations using NumPy or compiler intrinsics take advantage of this under the hood to speed up loops.

Offloading to GPUs

  • Offloading refers to transferring compute-intensive tasks from the CPU to the GPU, which is optimized for parallel processing. This is particularly effective for operations that can be executed simultaneously on thousands of threads, like matrix multiplications in deep learning or simulations in scientific computing. Tools like CUDA, OpenCL, or libraries like CuPy and PyTorch help achieve this in Python.

Example: Running a loop in parallel using OpenMP

#include <stdio.h> // For the standard input-output header file (can be thought of as a python library)
#include <omp.h> // For the OpenMP header file (can be thought of as a python library)

int main() {
    int N = 100000;                  // Size of the arrays
    double b[N], c[N], a[N];         // Input and output arrays are defined with fixed lengths

    // Initialize arrays b and c
    for (int i = 0; i < N; i++) {
        b[i] = i * 0.1;
        c[i] = i * 0.2;
    }

    // Parallel loop: compute a[i] = b[i] + c[i]
    #pragma omp parallel for
    for (int i = 0; i < N; i++) {
        a[i] = b[i] + c[i];
    }

    // Print first few values to check
    for (int i = 0; i < 10; i++) {
        printf("a[%d] = %f\n", i, a[i]);
    }

    return 0;
}

Since C programming is not a prerequisite for this workshop, let’s break down the parallel loop code in detail.

Requirements:

Before we look at the explanation of the C code, we will first look at the Python Equivalent of this code

Python Equivalent of the Code Logic

def add_arrays(b, c):
     """
     Takes two lists `b` and `c`, adds corresponding elements,
     and returns the resulting list `a` where a[i] = b[i] + c[i].
     """
    # Make sure both lists are the same length
    assert len(b) == len(c), "Input arrays must be the same length"

    # Create an output list of the same size
    a = [0.0 for _ in range(len(b))]

    # Loop through and compute a[i] = b[i] + c[i]
    for i in range(len(b)):
        a[i] = b[i] + c[i]

    return a

 # Example usage
 N = 100000
 b = [i * 0.1 for i in range(N)]
 c = [i * 0.2 for i in range(N)]

 a = add_arrays(b, c)

 # Print first few values to verify
 print(a[:10])

In this code snippet, we first define an add_arrays function that sums two lists element-wise, and then in the main part of the script we define b and c lists and execute add_arrays function. We are treating Python lists as C arrays here, in the sense that we are doing something unusual for Python when we first define an empty ‘placeholder’ a, and then assign new values to each element of the list in the for loop. The reason we are doing this and not a.append(b[i] + c[i]) is because we want to preserve each step of the original C code, and in C and C++ there is no possibility to do something like append to the C or C++ plain array (although there are variable types that allow this behavior, allocating memory in advance is much more efficient).

Explanation of the C code

  • #include <stdio.h>: Allows use of printf for output.
  • #include <omp.h>: Includes the OpenMP API header needed for parallel programming.
  • int N = 100000;: Defines the size of the arrays.
  • double b[N], c[N], a[N];: Declares three arrays of size N (two inputs and one output).
  • The first for loop initializes arrays b and c with values (i * 0.1 and i * 0.2).
  • #pragma omp parallel for: A compiler directive that tells the compiler to parallelize the for loop that follows.
  • The second for loop computes element-wise addition: a[i] = b[i] + c[i].
  • The final for loop prints the first 10 elements of the result to verify correctness.

How OpenMP Executes This

  1. OpenMP detects the available CPU cores (e.g., 4 or 8).
  2. It splits the loop iterations into chunks, assigning each chunk to a different thread.
  3. Each thread executes its assigned portion of the loop simultaneously (in parallel).
  4. Once all iterations are done, OpenMP synchronizes the threads automatically.

Output

The output prints the first 10 values of array a:

a[0] = 0.000000
a[1] = 0.300000
a[2] = 0.600000
a[3] = 0.900000
a[4] = 1.200000
a[5] = 1.500000
a[6] = 1.800000
a[7] = 2.100000
a[8] = 2.400000
a[9] = 2.700000
  • These values come from a[i] = b[i] + c[i], where b[i] = i * 0.1 and c[i] = i * 0.2.
  • Example: a[1] = (1*0.1) + (1*0.2) = 0.1 + 0.2 = 0.3.

Exercise: Parallelization Challenge

Consider this loop:

#include <stdio.h>

int main() {
    int N = 100000;            // Size of the arrays
    double a[N], b[N];          // Declare input array b and output array a

    // Initialize array b
    for (int i = 0; i < N; i++) {
        b[i] = i * 0.1;
    }

    // Initialize first element of a
    a[0] = b[0];

    // Compute cumulative sum: a[i] = a[i-1] + b[i]
    for (int i = 1; i < N; i++) {
        a[i] = a[i-1] + b[i];
    }

    // Print first few values to verify
    for (int i = 0; i < 10; i++) {
        printf("a[%d] = %f\n", i, a[i]);
    }

    return 0;
}

Can this be parallelized with OpenMP? Why or why not?

Solution

No, this cannot be safely parallelized because each iteration depends on the result of the previous iteration (a[i-1]).

OpenMP requires loop iterations to be independent for parallel execution. Here, since each a[i] relies on a[i-1], the loop has a sequential dependency, also known as a loop-carried dependency.

This prevents naive parallelization with OpenMP’s #pragma omp parallel for.

However, this type of problem can be parallelized using more advanced techniques like a parallel prefix sum (scan) algorithm, which restructures the computation to allow parallel execution in logarithmic steps instead of linear.

MPI (Message Passing Interface)

MPI is used for distributed-memory parallelism. Processes run on separate memory spaces (often on different nodes) and communicate via message passing. It is suitable for large-scale HPC clusters.

MPI emerged earlier, in the early 1990s, as the need for a standardized message-passing interface became clear in the growing field of distributed-memory computing. Before MPI, various parallel systems used their own vendor-specific libraries, making code difficult to port across machines.

In June 1994, the first official MPI standard (MPI-1) was published by the MPI Forum, a collective of academic institutions, government labs, and industry partners. Since then, MPI has become the de facto standard for scalable parallel computing across multiple nodes, and it continues to evolve with versions like MPI-2, MPI-3, MPI-4, and finally MPI-5 released on June 5 2025 which add support for features like parallel I/O and dynamic process management.

MPI allows multiple copies of a program, called processes, to run simultaneously and coordinate work by message passing. Each process has a unique rank, which identifies it within a communicator (a group of processes that can communicate with each other). We will learn about these methods of MPI using the example below which prints the square of the rank of each process.

Example: Implementation of MPI using the mpi4py library in python

# File Name - mpi_example.py
# This script demonstrates a simple MPI program using mpi4py.
# Each process computes the square of its rank and sends the result
# to the root process (rank 0), which gathers and prints all results.

# Import the MPI module from mpi4py
from mpi4py import MPI

# Initialize the default communicator (all processes belong to COMM_WORLD)
comm = MPI.COMM_WORLD

# Get the rank (unique ID) of the current process
rank = comm.Get_rank()

# Get the total number of processes running in this communicator
size = comm.Get_size()

# Each process computes the square of its rank
data = rank ** 2

# Gather all computed data at the root process (rank 0)
all_data = comm.gather(data, root=0)

# Only the root process prints the gathered data
if rank == 0:
    print(all_data)

Let’s see what is happening in this code snippet. We are using mpi4py to perform a gather operation (collection of results) using the MPI.COMM_WORLD communicator, which shows how multiple programs (called processes) can work together and then share their results.
When you run a program with MPI, you are actually running many copies of the same program at once. Each copy gets a number, called its rank, so if there are 4 processes, their ranks will be 0, 1, 2, and 3.

In the code each process:

Only the root process gathers the data and prints the complete list.

Example Output (4 processes):

Other ranks do not print anything. This example illustrates point-to-root communication which is useful when one process needs to collect and process results from all workers.

Terminology

  • Process:
    A single copy of your program that runs at the same time as the others.
    Analogy: Imagine four students all solving the same type of math problem at once.

  • Rank:
    The ID number for each process (starting at 0).
    Analogy: Just like students in a classroom might be numbered 0, 1, 2, 3 so the teacher knows who is who.

  • Communicator (MPI.COMM_WORLD):
    The group of all processes that can talk to each other.
    Analogy: Think of it as a big group chat that includes everyone.

  • Gather:
    A way for many processes to send their results to one chosen process.
    Analogy: Everyone puts their homework into the teacher’s basket, and the teacher collects them.

  • Root process:
    The process that receives and collects information (by default, rank 0).
    Analogy: The teacher who collects the homework and shows the class the results.

  • Point-to-root communication:
    A communication pattern where many processes send information to one process.
    Analogy: All students talk to the teacher, but not to each other.

Now we will make a slurm script which we learnt about in the slurm section to run the mpi code we just developed using python. Before we develop the actual script let us remind ourselves of the basics of a slurm script

Basics of a Slurm Script Explained

#!/bin/bash
#SBATCH -J jobname                    # Job name
#SBATCH -o outfile.%J                 # Output file
#SBATCH -e errorfile.%J               # Error file
#SBATCH --partition=computes_thin     # Parallel job queue
#SBATCH -N 2                          # Number of compute nodes
#SBATCH -n 24                         # Total number of CPU cores per node
mpirun -np 48 ./mpi_program           # Run with 48 MPI processes (2 nodes × 24 cores)

Script breakdown:

Slurm Script to execute the code

#!/bin/bash
#SBATCH --job-name=mpi_example # Name of the Job
#SBATCH --output=mpi_%j.out # Name of the output file for the Job
#SBATCH --error=mpi_%j.err # Name of the error file for the Job
#SBATCH --partition=computes_thin # Request the appropriate partition for the job
#SBATCH --nodes=2 # Request the appropriate number of computing nodes required for the job
#SBATCH --ntasks=4 # This specifies how many mpi processes will run across the nodes
#SBATCH --time=00:10:00 # This specifies the maximum amount of time that the job will run for
#SBATCH --mem=16G # This specifies the amount of memory which will be allocated for the job

# Load required modules (This is a sanity check in case jobs are not running as required)
module list

# Activate your virtual environment (We have already activated this in terminal so this again a sanity check)
source interpython/bin/activate

# Run the Python mpi script, here the -np flag specifies the number of processes (copies) the mpi program will run
mpirun -np 4 python mpi_example.py

Make sure your virtual environment has mpi4py installed and that your system has access to the OpenMPI runtime via mpirun. Adjust the number of nodes and tasks depending on the cluster policies.

Exercise 1: Gather lists instead of numbers

Modify the code so that instead of collecting rank ** 2,
each process sends a list of numbers from 0 to rank.

Example (4 processes):

  • Rank 0 sends [0]
  • Rank 1 sends [0, 1]
  • Rank 2 sends [0, 1, 2]
  • Rank 3 sends [0, 1, 2, 3]

The root process should gather and print:

[[0], [0, 1], [0, 1, 2], [0, 1, 2, 3]]

Solution

# File Name - mpi_ex1.py
# This script demonstrates the use of MPI gather with lists using mpi4py.
# Each process creates a list of integers from 0 up to its rank,
# and the root process (rank 0) gathers and prints all the lists.

# Import the MPI module from mpi4py
from mpi4py import MPI

# Initialize the default communicator (all processes belong to COMM_WORLD)
comm = MPI.COMM_WORLD

# Get the rank (unique ID) of the current process
rank = comm.Get_rank()

# Each process creates a list of numbers from 0 to its rank
data = list(range(rank + 1))

# Gather all lists at the root process (rank 0)
all_data = comm.gather(data, root=0)

# Only the root process prints the gathered lists
if rank == 0:
   print(all_data)

Exercise 2: Broadcast after gather

Currently, only the root process (rank 0) collects the data. Modify the code so that after gathering, the root process broadcasts (‘sends’) the complete list back to all processes.

Hint: Use comm.bcast() after comm.gather().

  • What happens if each process prints the result after the broadcast?

Solution

# File Name - mpi_ex2.py
# This script demonstrates combining MPI gather and broadcast using mpi4py.
# 1. Each process computes the square of its rank.
# 2. The results are gathered at the root process (rank 0).
# 3. The root process broadcasts the gathered list to all processes.
# 4. Each process prints the final received list.

# Import the MPI module from mpi4py
from mpi4py import MPI

# Initialize the default communicator (all processes belong to COMM_WORLD)
comm = MPI.COMM_WORLD

# Get the rank (unique ID) of the current process
rank = comm.Get_rank()

# Each process computes its rank squared
data = rank ** 2

# Gather all squared values at the root process (rank 0)
gathered = comm.gather(data, root=0)

# Broadcast the gathered list from the root to all processes
result = comm.bcast(gathered, root=0)

# Each process prints the broadcasted result
print(f"Process {rank} received: {result}")

Example output (4 processes):

Process 0 received: [0, 1, 4, 9]
Process 1 received: [0, 1, 4, 9]
Process 2 received: [0, 1, 4, 9]
Process 3 received: [0, 1, 4, 9]

Now all processes have the final list, not just the root.

References:

Key Points

  • Serial code is limited to a single thread of execution, while parallel code uses multiple cores or nodes.

  • OpenMP and MPI are popular for parallel CPU programming; CUDA is used for GPU programming.

  • High-level libraries like Numba and CuPy make GPU acceleration accessible from Python.

previous episode

next episode
